Default eBook reader for the e200 (version 0.9.13 released August 9, 2008)

I suddenly got the urge to get eBooks onto my e260 last night. I did some quick searches couldn't find any way to do it, so I came up with a little app myself.

It basically reads in text files and converts them to images to be used in photo mode. You can inverse the colors, set it to landscape or portrait modes, and show page numbers.

Unfortunately the player only seems to support a specific bitmap format, so each file is 78K versus what could be done in a 6K PNG. I did "The Tale of Two Cities" and it came out at about 200 megs, and 3000 images.

The media converter isn't recommended, use USB mode and drag and drop to avoid resizing images.

Still very much a work in progress, but maybe someone else can find a use for it.

It requires .net 2.0, available from Windows update.

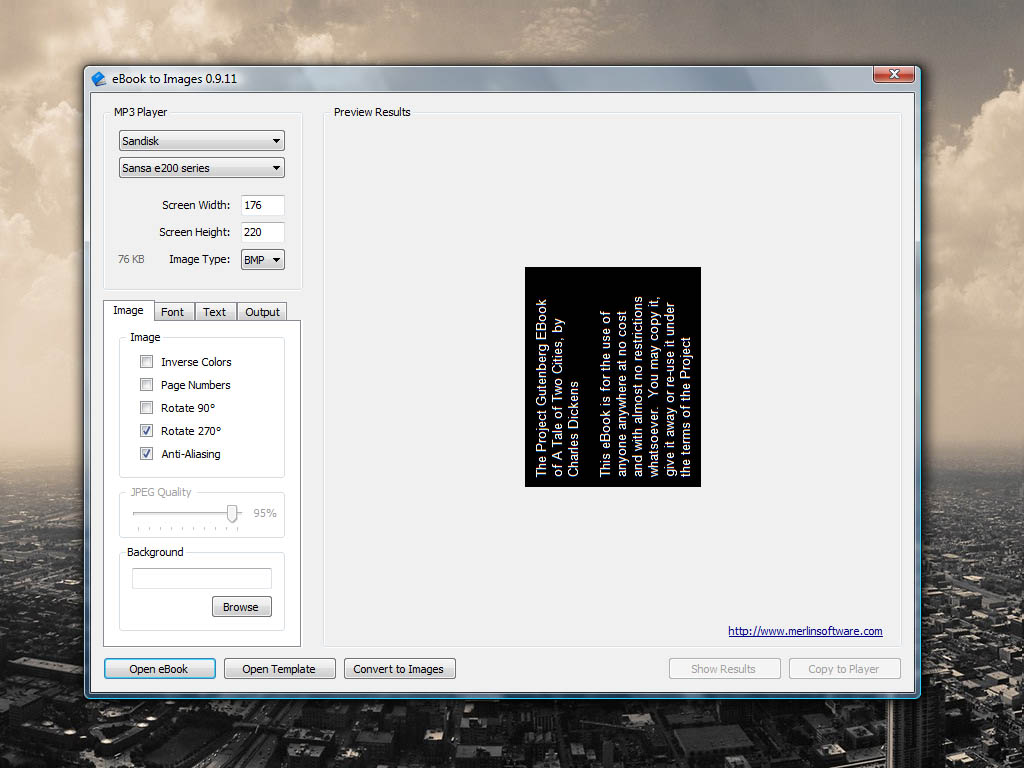

screenshot
Download Installer

0.9.13, Updated August 9, 2008

* Ability to convert PDF files with the copy flag set
* Improved support for LIT files
* Support for Word with Office 2000 - must have SR1 patch or newer
* Optional additional PNG compression using PNGcrush
* Cache document, fast re-drawing when changing graphical options
* New <%PAGEBREAK%> tag for non-templates to force a page break/new image
* Fixed bug that could occur when splitting into folders crashing at the end

0.9.12, Updated March 20, 2008

* Automatically detects document language settings to support other country's special characters.
* Option under Text tab to select document encoding, defaults to automatic. If a document starts in English, it will be detected as English, so this can override
it. Example: Many Chinese documents are Big5 encoded.

* Text tab settings are now global, not template specific
* Right-click menu to reset templates back to the defaults
* Properly closes instances of Word after importing a DOC file

0.9.11, Updated January 3, 2008

* Changed application window size to better fit large images
* Support for Microsoft Word documents (must have Office XP/2002 or newer installed)
* Added player templates, grouped by manufacturer
* Right-click menu to reset templates back to the defaults
* Made the JPEG quality adjustable via slider, 1-100%, all default to 95%
* Live file preview to show what actual images that use compression will look like
* Displays the file size of the current image in the MP3 player box
* Includes larger possible font size selections
* Updated PDF converter to v3.02
* Fixed issue detecting some sansa e200 players for automatic image transfers
* Fixed issue with manually selected image transer when not installing to a drive root
* Fixed issue with some international characters getting filtered from HTML/LIT files


0.9.10, Updated June 12, 2007

* Changed compression ratio on JPGs, would cause issues in RockBox


0.9.9, Updated June 7, 2007

* No longer applies Sansa image mirroring fixes if not creating a bitmap (ie using RockBox)


0.9.8, Updated June 5, 2007

* MP3 player template settings now save between sessions
* Customizable text/background colors
* Option to use a background image


0.9.7, Updated May 30, 2007

* Improved support for other languages
* Support for templates
* Uses minimum compression in JPGs to reduce artifacts
* Pull sidebar options into tabs
* Option to enforce or ignore trialing returns
* Option to align text to the right for languages like Hebrew
* Detects available font styles
* Centers the preview image
* Fix to a bug when putting all files into the same folder
* Fix for not stripping HTML tags from .HTML files, not just .HTM


0.9.6, Updated February 12, 2007

* Added a button to copy eBook to the mp3 player
* For sansa players, directories are now only one-level deep so the player doesn't ignore them


0.9.5, Updated January 27, 2007

* Added drag and drop support
* Inserts spaces where needed that aren't in the original file for new layout


0.9.4, Updated January 12, 2007

* Added international character support
* Fixed a bug that cut off the last page of text

Last edited by jason novak; 08-09-2008 at 01:47 PM.
Reply With Quote

Advertisement [Remove Advertisement]

  #2
Old 12-20-2006, 02:43 PM
alexnrok alexnrok is offline
Junior Member

Join Date: Dec 2006
Posts: 34
Default

good job thanx dude
Reply With Quote

  #3
Old 12-20-2006, 02:48 PM
dfkt's Avatar
dfkt dfkt is offline
Moderator

Join Date: May 2006
Location: Vienna, Austria
Posts: 15,330
Default

Great app, Jason!

I'm not sure if Rockbox supports text files as of yet, but if not, it might be interesting if someone created a plugin that reads standard .txt files. (Thought I mention that, since Rockbox development for the e200 is already pretty far...)
__________________
Please don't PM me with questions that can be answered in a forum thread. Don't be an idiot.
My Gear and Reviews | My RMAA Tests | IRC: #anythingbutipod on Freenode | Last.fm | Album Art Exchange | Rockbox | Replaygain
Reply With Quote

  #4
Old 12-20-2006, 03:34 PM
jeeb's Avatar
jeeb jeeb is offline
Banned

Join Date: Aug 2006
Location: Canada
Posts: 85
Default

Rockbox can read .txt files, I just finished reading Fightclub on my sansa, thanks alot for making tis though, it will be nice for people who don't want rockbox.
Reply With Quote

  #5
Old 12-20-2006, 06:13 PM
Jinkx's Avatar
Jinkx Jinkx is offline
Member

Join Date: Dec 2006
Location: St. Louis, MO
Posts: 162
Default

May want to make this one a sticky dfkt...
__________________
Currently an IT Professional
owner of a sandisk e250 = very impressed
DRM Removal Tool
http://forum.doom9.org/showthread.php?t=114916
MSC Playlist editor
http://www.anythingbutipod.com/forum...ead.php?t=2381
Reply With Quote

  #6
Old 12-20-2006, 06:16 PM
dfkt's Avatar
dfkt dfkt is offline
Moderator

Join Date: May 2006
Location: Vienna, Austria
Posts: 15,330
Default

Indeed, good idea.
__________________
Please don't PM me with questions that can be answered in a forum thread. Don't be an idiot.
My Gear and Reviews | My RMAA Tests | IRC: #anythingbutipod on Freenode | Last.fm | Album Art Exchange | Rockbox | Replaygain
Reply With Quote

  #7
Old 12-21-2006, 12:59 AM
jason novak jason novak is offline
Junior Member

Join Date: Jun 2006
Posts: 70
Default

Ok, since there's some interest I've polished it up a bit. The screenshot and download links are updated
Reply With Quote

  #8
Old 12-21-2006, 07:14 PM
kailash kailash is offline
Junior Member

Join Date: Oct 2006
Posts: 81
Default

hey..great program..but where are all the files after conversion?
Reply With Quote

  #9
Old 12-21-2006, 07:21 PM
jason novak jason novak is offline
Junior Member

Join Date: Jun 2006
Posts: 70
Default

It puts them in a folder on the desktop, the next version will have a button to go directly to it
Reply With Quote

  #10
Old 12-22-2006, 12:52 AM
jason novak jason novak is offline
Junior Member

Join Date: Jun 2006
Posts: 70
Default

One more minor update, added simple support for HTML files and Microsoft Reader .lit files, and a button to show the results folder
Reply With Quote

  #11
Old 12-22-2006, 09:56 PM
sil3ntdarkn355's Avatar
sil3ntdarkn355 sil3ntdarkn355 is offline
Junior Member

Join Date: Dec 2006
Posts: 54
Default

Aww it doesn't support PDF? Oh well.
Reply With Quote

  #12
Old 12-23-2006, 12:55 AM
jason novak jason novak is offline
Junior Member

Join Date: Jun 2006
Posts: 70
Default

Just added simple pdf support, and an option to toggle anti-aliasing on and off
Reply With Quote

  #13
Old 12-23-2006, 10:43 AM
sil3ntdarkn355's Avatar
sil3ntdarkn355 sil3ntdarkn355 is offline
Junior Member

Join Date: Dec 2006
Posts: 54
Default

Ah, thanks for the PDF-to-text tool.
Reply With Quote

  #14
Old 12-23-2006, 11:09 PM
jason novak jason novak is offline
Junior Member

Join Date: Jun 2006
Posts: 70
Default

New version, some pretty important changes.

First, fixed a bug when using the widescreen/rotated modes not rotating all images.

Second, fixed the issue with images appearing mirrored on the PC but OK on the player. They do something weird with the image format, the media converter actually seems to make mirrored images just like I was, but they specified a negative height, ie -224 vs 224, so it would flip it. Not sure why ... The converter should work now, but is not recommended due to the point below:

Finally, I found the text quality was better by setting the resolution to 176x220 vs 176x224. It seems the player is altering the size on the fly and introducing defects like missing an entire row of pixels or distorting some characters. At the new resolution it seems to display perfectly.
Reply With Quote

  #15
Old 12-24-2006, 08:49 AM
jeff043 jeff043 is offline
Junior Member

Join Date: Nov 2006
Location: UK
Posts: 92
Default

Ah, thanks for this update, the pixels aren't missing from the text anymore.
Reply With Quote

  #16
Old 12-24-2006, 11:12 AM
bigdigital's Avatar
bigdigital bigdigital is offline
Junior Member

Join Date: Dec 2006
Location: Ukraine, kiev
Posts: 11
Default

Please add support of cyrillic
Reply With Quote

  #17
Old 12-26-2006, 06:36 AM
nechit nechit is offline
Junior Member

Join Date: Dec 2006
Posts: 7
Default

Add Cyrillic, please...
Reply With Quote

  #18
Old 12-27-2006, 01:38 PM
jason novak jason novak is offline
Junior Member

Join Date: Jun 2006
Posts: 70
Default

I've never really dealt with different languages ... it doesn't work is you pick a Cyrillic font?
Reply With Quote

  #19
Old 12-27-2006, 06:15 PM
Gigatoaster Gigatoaster is offline
Junior Member

Join Date: Dec 2006
Location: Rennes (France)
Posts: 11
Default

Hi!

Fantastic! However, a PDF of 135 pages turn in 57 Mo instead of 360KB, do you think there is someting I can do?

Anyway, I would like to thank you for your job!
Reply With Quote

  #20
Old 12-29-2006, 03:52 AM
jason novak jason novak is offline
Junior Member

Join Date: Jun 2006
Posts: 70
Default

Unfortunately it only seems to support bitmaps in photo mode. I think it reads jpegs fine when showing album art, so this is just some kind of limitation they decided to impose. I tried coping over other types and they don't appear, renaming them to .bmp's cause an error when trying to view them. If it would read PNG's it about be down to about 7K per image with no image loss. A JPG is around 20K, though it will loose some quality. The bitmaps it has to use now are 78K.
Reply With Quote
